Sorting and Transfer System AS Series
What is a sorter system?
A sorter is a sorting transfer machine with high-level sorting ability, and a transfer path replete with many branching capabilities. It is a vital piece of hardware for achieving the automation of store-based (customer) sorting and destination-based sorting, which is the main business involved in distribution centers during shipping. A sorting system is indispensible for improving distribution center capabilities in terms of both instant responsiveness (processing speed) and capacity (mass processing capability), which is essential to a consolidated distribution center.
Slide Shoe Sorting and Transfer Machine “Auto-Sorter”AS SERIES
(Slide shoe type) Case Sorter
Auto-Sorter (FP20)
The Auto-Sorter (FP20) is a high-speed type sorter with a slide sorting angle of 20°. It is capable of sorting a wide range of cargo reliably and gently provided they have a flat and stable base (between 30 and 45kg).
When single sorting (right- or left-sided sorting) cargo with dimensions of 500×600mm at a transfer speed of 200m/min, more than 11,700 pieces can be sorted per hour.
(Slide shoe type) Case Sorter

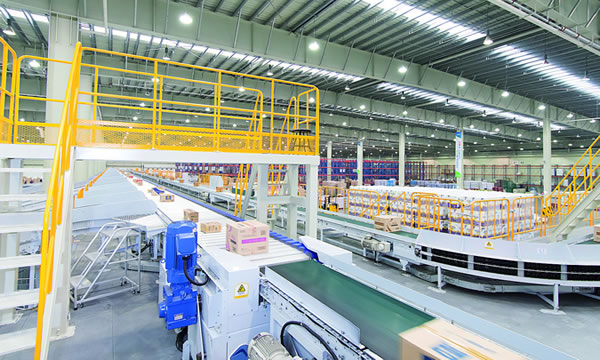

Auto-Sorter (FP30)
The Auto-Sorter (FP30) is a high-speed type sorter with a slide sorting angle of 30°. It is capable of sorting a wide range of cargo reliably and gently provided they have a flat and stable base (under 45kg).
When single sorting (right- or left-sided sorting) cargo with dimensions of 500×600mm at a transfer speed of 110m/min, more than 6,100 pieces can be sorted per hour.
(Slide shoe type) Piece sorter

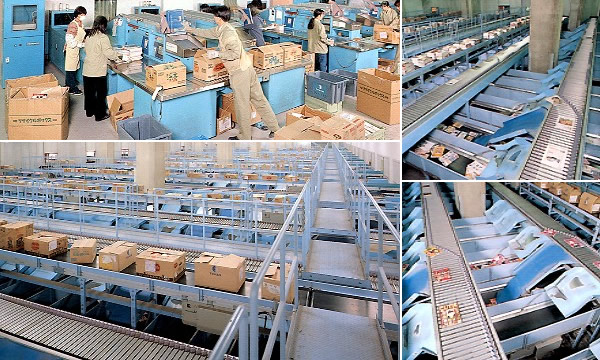

Auto-Sorter mini
This unit is capable of sorting a range of pieces from business card sized items through to small carton cases by using ultra small shoes (shoe pitch 50.8 mm), designed for small, loose, and thin items.
Under the conditions of a transfer speed of 60m/minute and a cargo length of 55mm, this unit demonstrates exceptionally high-performance sorting of a maximum 8,000 items per hour (machine capacity).
